Authelia¶
Authelia is an open-source authentication and authorisation (AA) server and portal fulfilling the identity and access management (IAM) role of information security in providing multi-factor authentication and single sign-on (SSO) for your applications via a web portal. It acts as a companion for common reverse proxies, and we will integrate it into the SWAG Nginx Reverse Proxy to manage secure remote access into your home MediaStack network.
We will link Authelia with DUO Security, so anyone logging into your home MediaStack, will be authenticated with username / password, and MFA Push Notification to their mobile phone application.
Additional Application Information - External Links
- Application Website: https://www.authelia.com/
- Docker Information: https://hub.docker.com/r/authelia/authelia
User Database¶

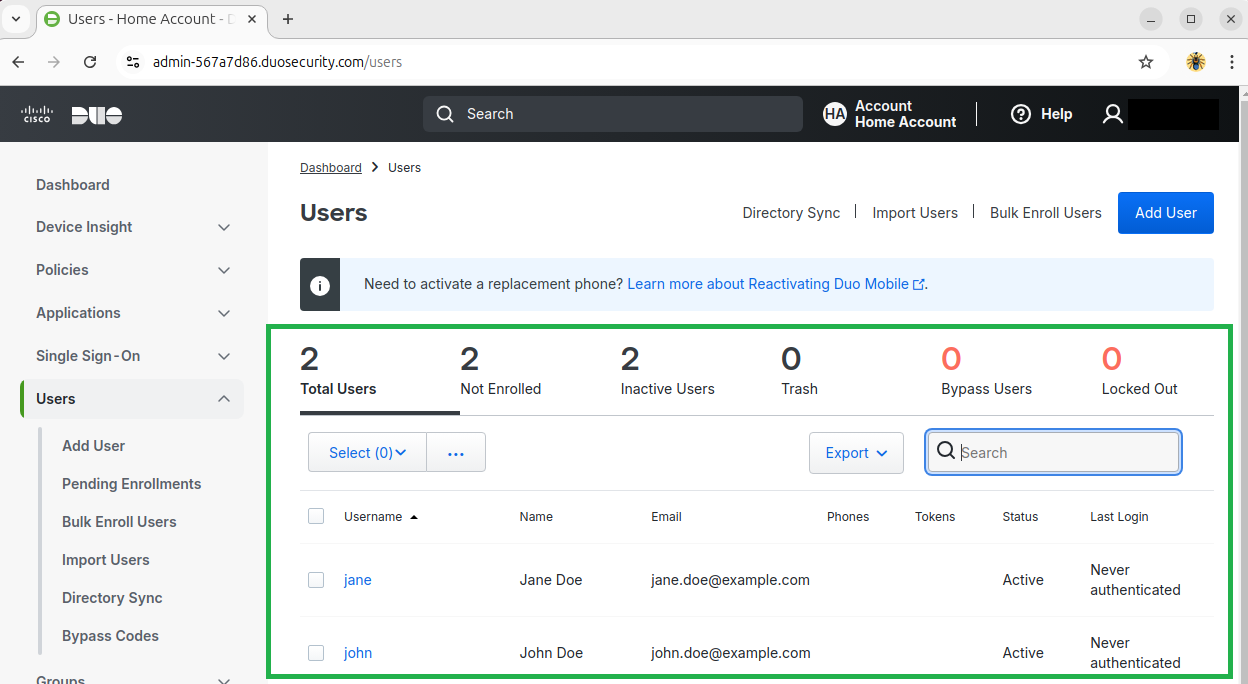

When we set up DUO Security in the Admin portal, would have created several users, and sent them an enrollment email from inside the portal.
We now need to create a "User Database" in Authelia, so it knows which usernames / passwords to use, in the first round of authentication.
We need to add each username, as it is written in DUO Admin portal.
Add users into Authelia users_database.yml file.
Add the following into the users_database.yml file in the authelia configuration folder, you can update their displayname and email fields as needed.
users:
jane:
displayname: Jane Doe
password: $argon2id$v=19$m=65536,t=3,p=4$/yxpBgUJVmRvq0mMIsFUaQ$pGtxdCaI3qkeVGoU+BGSb0pY1SHDxKkclRK5UINfISQ
email: jane.doe@example.com
groups: []
john:
displayname: John Doe
password: $argon2id$v=19$m=65536,t=3,p=4$/yxpBgUJVmRvq0mMIsFUaQ$pGtxdCaI3qkeVGoU+BGSb0pY1SHDxKkclRK5UINfISQ
email: john.doe@example.com
groups: []
Generating Secure Passwords¶
The Authelia Docker image, as well as being an AA server, also has powerful commands / hash algorithms in order to generate secure passwords and encryption strings.
So if we want to set john with a password of MediaStackForever, you would type the following command:
sudo docker run authelia/authelia authelia crypto hash generate argon2 --password MediaStackForever
This will produce the following Digest hash:
Digest: $argon2id$v=19$m=65536,t=3,p=4$GqcdgEzg6VEstG63xLC8EQ$QfA7ttd/9l6WmIvZKm5Z8x+cqGBygHjz/I8brZpiDsg
Therefore, the password string for Jane's account would be changed to suit the following. The password is still MediaStackForever, it is just converted to a Digest hash so people can't read it if they have access to the users_database.yml file.
users:
jane:
displayname: Jane Doe
password: $argon2id$v=19$m=65536,t=3,p=4$GqcdgEzg6VEstG63xLC8EQ$QfA7ttd/9l6WmIvZKm5Z8x+cqGBygHjz/I8brZpiDsg
email: jane.doe@example.com
groups: []
The Authelia Docker image, can also be used to generate long random passwords, which will be needed in the main configuration file below, they can be generated with the following command:
The output will be a long "Random Passowrd", and the "Digest" hash of the randomly generated password:
Random Password: Lk1rrDRSJjvaZeONRbDvhSL3ObWZnLJWYrFZszTM8l9nptJLt3rjZL84jhYTcHmzJv8bjxiv
Digest: $argon2id$v=19$m=65536,t=3,p=4$3LNeSdMd8bhnvYkd3v!YhS5ZjQk0qxPait/iagR9PLzfkUHzi6PrYO^0S68Kp6RSiU
For further help in Authelia Docker commands, type the following:
Authelia Configuration File¶
First, we will make a copy of the original configuration.yml file, as we are going to replace all of the settings:
We will now replace the contents of the Authelia configuration.yml will the settings below.
Copy and paste the entire "Authelia Configuration" below, into the Authelia configuration.yml file.
###############################################################################
## Authelia Configuration ##
###############################################################################
server:
address: tcp://:9091/authelia
asset_path: /config/assets
disable_healthcheck: false
buffers:
read: 4096
write: 4096
log:
level: debug
format: json
file_path: /config/authelia.log
webauthn:
disable: false
timeout: 60 seconds
display_name: Authelia
user_verification: preferred
duo_api:
disable: false
hostname: api-0535f56e.duosecurity.com
integration_key: D9JJNEKXY8675GB2S76F
secret_key: CAffh785efv654vconei5fr7gvTFGJhbUg58htd3
enable_self_enrollment: false
identity_validation:
reset_password:
jwt_lifespan: 5 minutes
jwt_algorithm: HS256
jwt_secret: 9WCRufdGU036x1YK6EnVfsqq6stWa7IviITINYsuWICL4wSdQkPIBo7GhqNtHHynnRY3juj6F1bOGsghOavBGKJkEwAWjSoD
elevated_session:
code_lifespan: 5 minutes
elevation_lifespan: 10 minutes
characters: 8
require_second_factor: false
skip_second_factor: false
authentication_backend:
password_reset:
disable: false
file:
path: /config/users_database.yml
watch: false
search:
email: false
case_insensitive: false
password:
algorithm: argon2
argon2:
variant: argon2id
iterations: 3
memory: 65536
parallelism: 4
key_length: 32
salt_length: 16
password_policy:
standard:
enabled: true
min_length: 14
max_length: 96
require_uppercase: true
require_lowercase: true
require_number: true
require_special: true
access_control:
default_policy: deny
rules:
- domain: auth.example.com
policy: bypass
- domain: ["example.com", "*.example.com"]
policy: two_factor
session:
name: authelia_session
secret: LBRbU9cEAAoR0SjtQf3QHUCbNWeMPiJfMLIO5rHW13HqDYNYgXTwhEqm0DfzSjAvI1fKljkOBUeV95HuFdKqcOjfaE0W7yFW
same_site: strict
inactivity: 5m
expiration: 1h
remember_me: 1M
cookies:
- domain: example.com
authelia_url: https://auth.example.com/authelia
default_redirection_url: https://example.com
same_site: strict
inactivity: 5 minutes
expiration: 1 hour
remember_me: 1 month
regulation:
max_retries: 5
find_time: 5 minutes
ban_time: 15 minutes
storage:
encryption_key: u02IiIfGlhS0y5YnAfaDaYqMxaFPqc0ajwBvqxTlflXvX65FSoeEXzgs8o64lKD5OnVl3w9H7PbW88z9aGOCfZlZvdMT4glK
local:
path: /config/db.sqlite3
notifier:
disable_startup_check: false
filesystem:
filename: /config/notifications.txt
# NOTE: Filesystem and Filename must be disabled with "#"
# if you want to enable SMTP below - only one can be active.
# smtp:
# address: "smtp://mail.gmail.com:587"
# timeout: "5 seconds"
# username: "username@gmail.com"
# password: "gmailpassword"
# sender: "Authelia <admin@example.com>"
# identifier: localhost
# subject: "[Authelia] {title}"
# startup_check_address: "test@authelia.com"
# disable_require_tls: false
# disable_html_emails: false
# tls:
# server_name: smtp
# skip_verify: false
# minimum_version: TLS1.2
# maximum_version: TLS1.3
Customise Your Settings¶
Now that you have copied the working configuration above into your own Authelia configuration.yml file, you will need to customise it slightly to your needs:
-
Replace all domains (example.com), with your own domain name - (there are 7 entries).
-
Update DUO Security API connection details.
duo_api:
disable: false
hostname: api-0535f56e.duosecurity.com # <-- Copy from DUO Security Admin Portal
integration_key: D9JJNEKXY8675GB2S76F # <-- Copy from DUO Security Admin Portal
secret_key: CAffh785efv654vconei5fr7gvTFGJhbUg58htd3 # <-- Copy from DUO Security Admin Portal
- Generate new secret values to protect your Authelia instance.
- jwt_secret: Protects the integrity of JWT tokens, ensuring session tokens are secure and valid.
- session secret: Encrypts session data stored in cookies, preventing tampering or session hijacking.
- encryption_key: Encrypts sensitive data stored in the database, ensuring it remains safe even if the storage backend is compromised.
Note
Authelia supports placing secrets into separate text files and secure their access permissions. If you prefer to save your secrets in this method, then refer to this guide for more info:
https://www.authelia.com/integration/deployment/docker/
-
Update the Authelia Password Policy if needed, refer to: https://www.authelia.com/configuration/security/password-policy/
-
Update the SMTP settings so Authelia users can follow the "forgot password" process, and be sent password reset links to their configured email address.
smtp:
address: "smtp://smtp:587" # <-- Configured for local SMTP Docker Container - see docker-compose.env config file
timeout: "5 seconds"
username: "username" # <-- If using SMTP Docker - username / password must match in docker-compose.env config
password: "password" # <-- If using SMTP Docker - username / password must match in docker-compose.env config
Additional info: https://www.authelia.com/configuration/notifications/smtp/
- Redeploy Authelia with new configuration settings:
sudo docker container stop authelia
sudo docker container rm authelia
sudo docker compose --file docker-compose-authelia.yaml --env-file docker-compose.env up -d
SWAG and Authelia¶
As SWAG is a NGINX proxy with curated configurations, integration of Authelia with SWAG is very easy and you only need to enabled two includes.
Enable the auth.subdomain.conf for Authelia:
Find the line which says server_name and change authelia.* to auth.* as shown below.
At this stage, Authelia is now fully configured, however we still need to enable some of the SWAG Nignx Reverse Proxy servers to use Authelia, however we will do this in the next section, to ensure correct workflow.
CAN THIS BE DELETED BELOW... ???
NOTHING TO DO TO HERE....
cd $FOLDER_FOR_CONFIGS/swag/nginx/site-confs
vi default.conf
include /config/nginx/authelia-server.conf;
cp authelia-server.conf.sample authelia-server.conf
cp authelia-location.conf.sample authelia-location.conf
How to set up users, passwords and groups in Authelia
