DNS Resolution¶

Introduction¶

Internet-based DNS (Domain Name Service) resolution is a fundamental process that translates human-friendly domain names into machine-readable IP addresses. This process is essential because while humans find it easier to remember domain names, computers and other networked devices rely on IP addresses to communicate. When you enter a URL into your web browser, a DNS query is initiated to find the corresponding IP address. This query travels through various DNS servers until the IP address is returned to your browser, allowing it to connect to the desired web server; in the case of the MediaStack Project, we want to remotely connect to our home network and Docker applications.

Most home-based Internet connections use dynamically assigned IP addresses, which can change periodically, causing an issue where your domain name (example.com) points to an IP address, which may be assigned to another user from your ISP. To resolve this, we need to ensure our DNS entries are updated, any time your home IP Address changes, to ensure your domain name always points to your home IP address, even when it changes.

When registering a domain name, you can choose a friendly name that suits you from an Internet DNS Registrar, or you can use a DDNS Provider that generally offers a free subdomain, which is assigned from their own domain name.

i.e. If you wanted to register example, you could choose a TLD, as example.com, or a DDNS provider would be example.ddnsprovider.org.

DNS: Small annual fee, however you have full management of the domain and all subdomains, can be routed through Cloudflare
DDNS: Generally free, however you have very limited management of sub-domains, cannot be routed through Cloudflare

The MediaStack Guide highly recommends people choose their own TLD (Top Level Domain) name, so you have greater flexibility, management and privacy over the secure remote connection to your home MediaStack environment.

Cloudflare DNS¶

The best configuration for running MediaStack is to use Cloudflare to manage our DNS entries, as it also allows the DDNS-Updater Docker container to update the DNS records on Cloudflare, when your home IP address changes... And, its free for what we need.

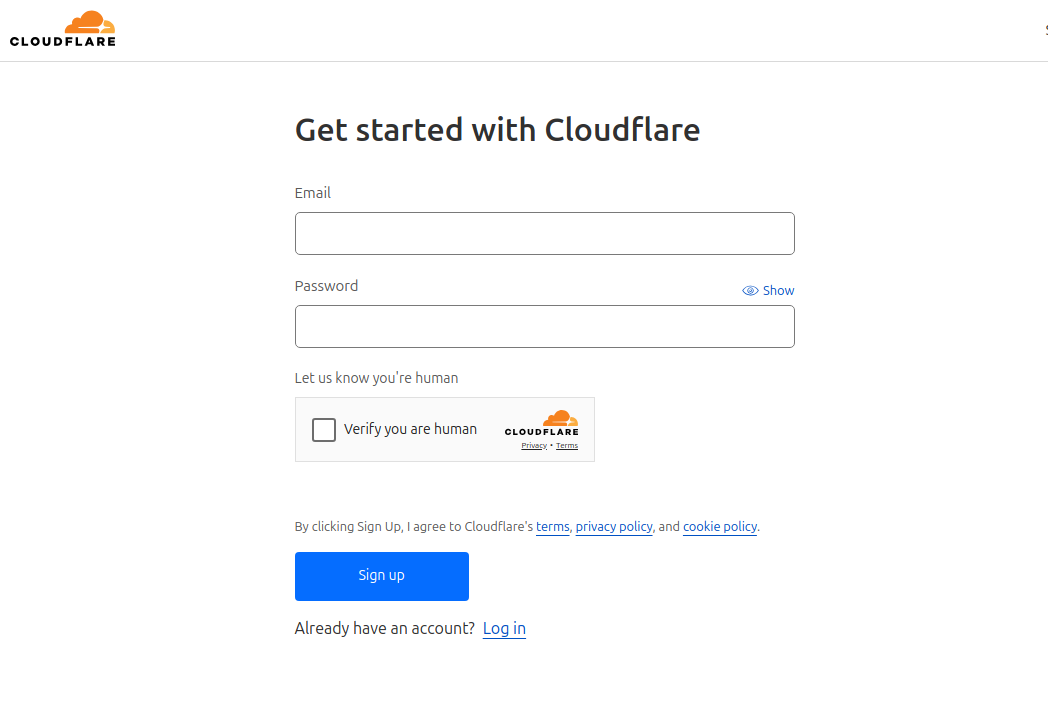

Register your free Cloudflare account: https://dash.cloudflare.com/sign-up

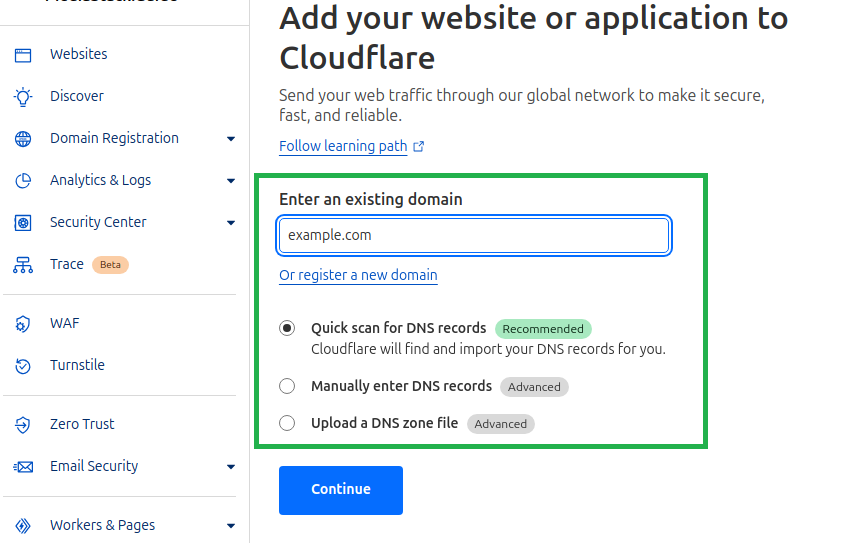

If you already have your own domain name, then you can add it to Cloudflare to manage the domains and resolution, just be sure to update the "nameserver" records with your DNS Registrar.

Select under the "Domain Registration" menu.

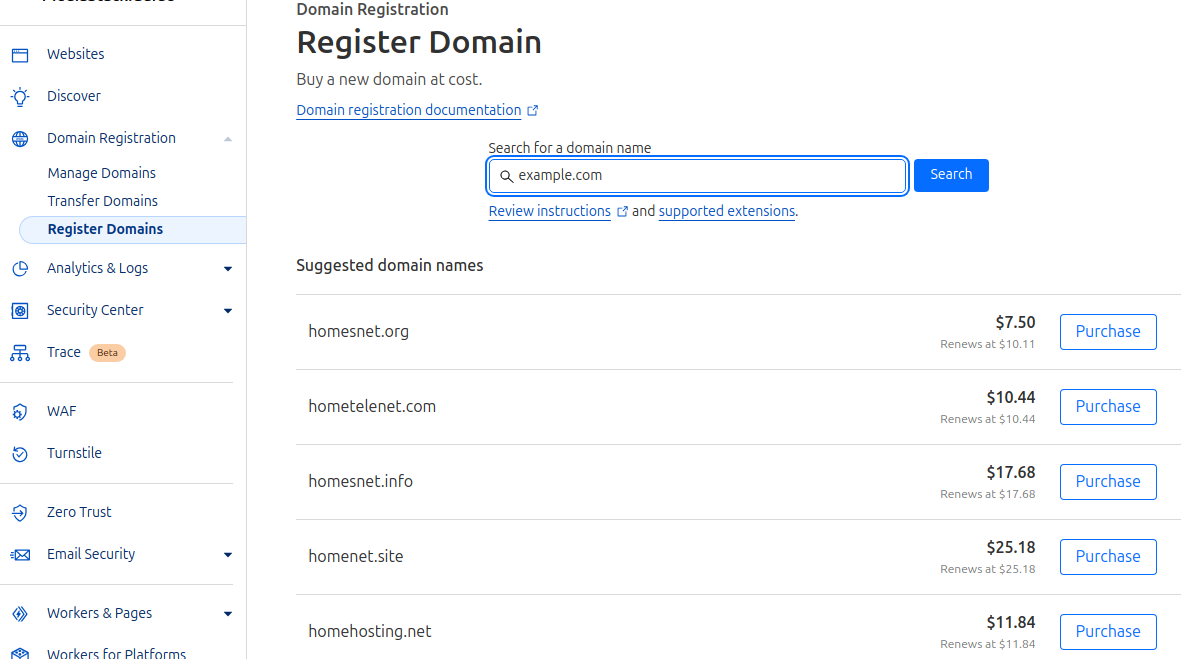

If you don't have an Internet domain name at all, then you can register a domain name through Cloudflare, as they are a certified DNS registrar.

Cloudflare instructions to register a new domain name: https://developers.cloudflare.com/registrar/get-started/register-domain

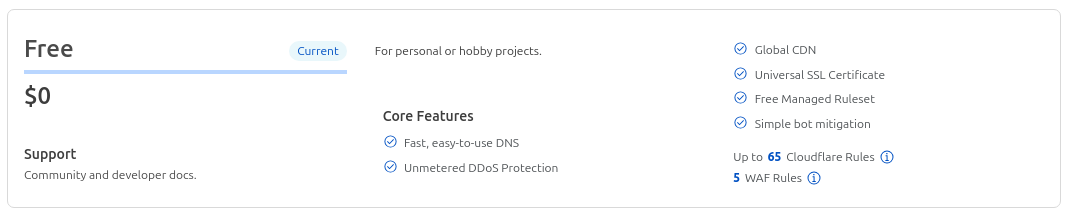

When you register, or add, your domain name into Cloudflare, be sure to select the "Free Plan" option, which is all we need for MediaStack requirements.

Cloudflare API Token¶

Now that you have added your domain name into the Cloudflare portal, we want to be able to manage your DNS entries remotely, using the secure API.

You can create your API Token by clicking the following link: https://dash.cloudflare.com/profile/api-tokens

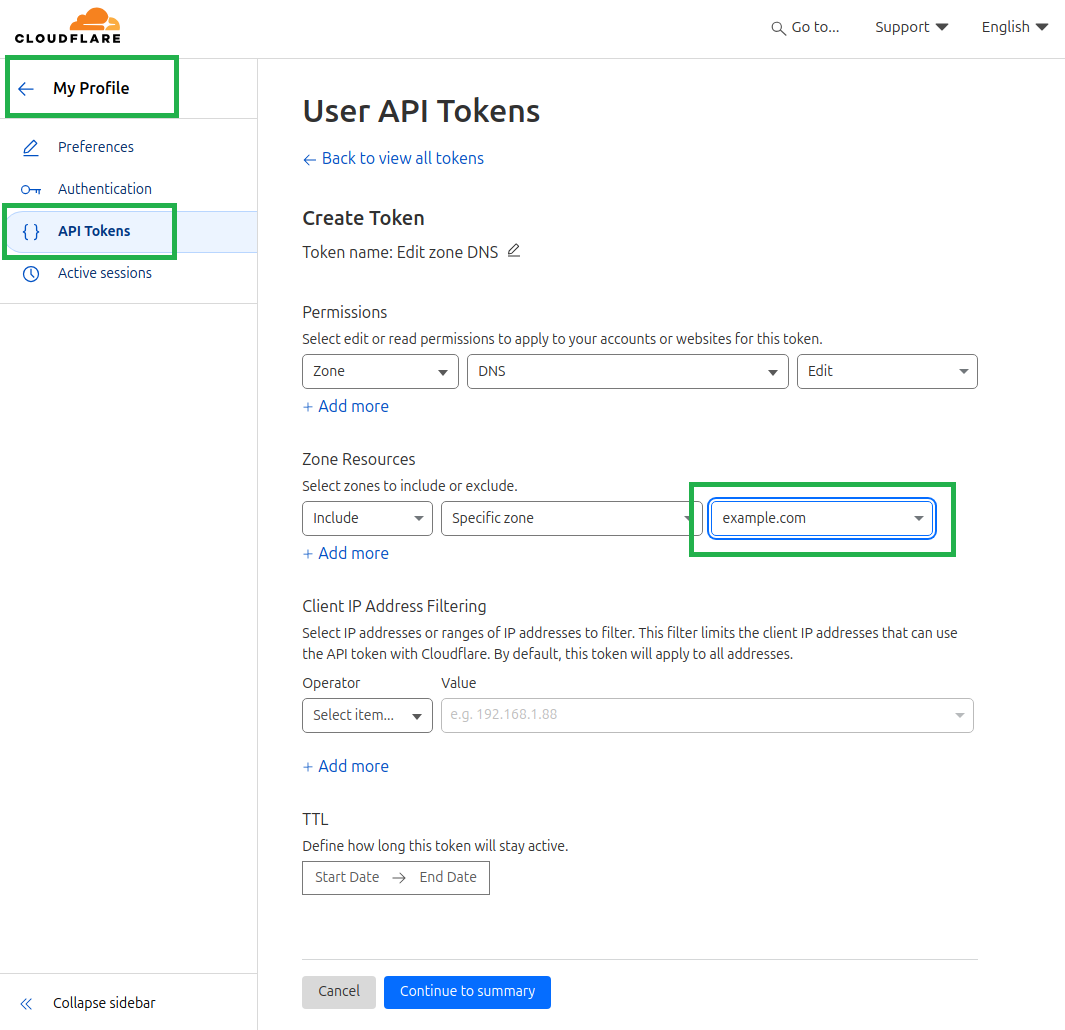

Under the "User API Tokens" section, click "Create Token", then select "Edit Zone DNS → Use Template".
Select your domain name from the drop-down list under "Zone Resources".
Select "Continue to summary".

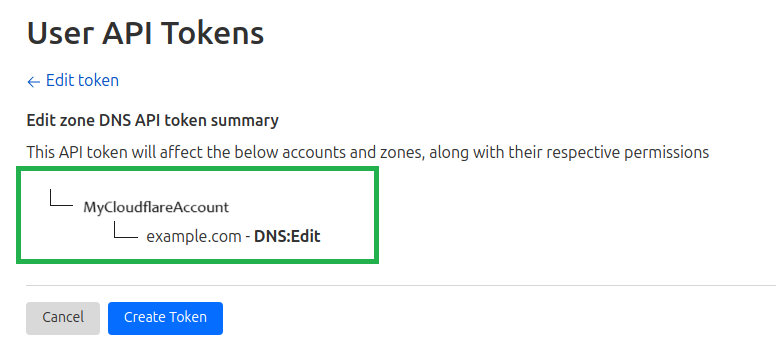

If you're happy with the details on the "Edit zone DNS API token summary" page, then select "Create Token".

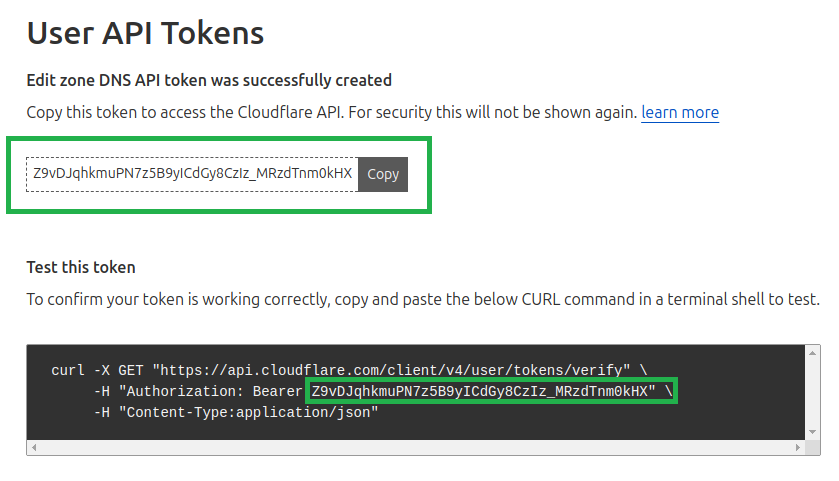

Your API Token will now be generated and assign with correct permissions, and displayed on screen.
Write down and save your API Token in a secure spot, as Cloudflare will not show you the token again - for security reasons.

Domain Account ID and Zone ID¶

Log in to the Cloudflare dashboard:
Select your account and domain.

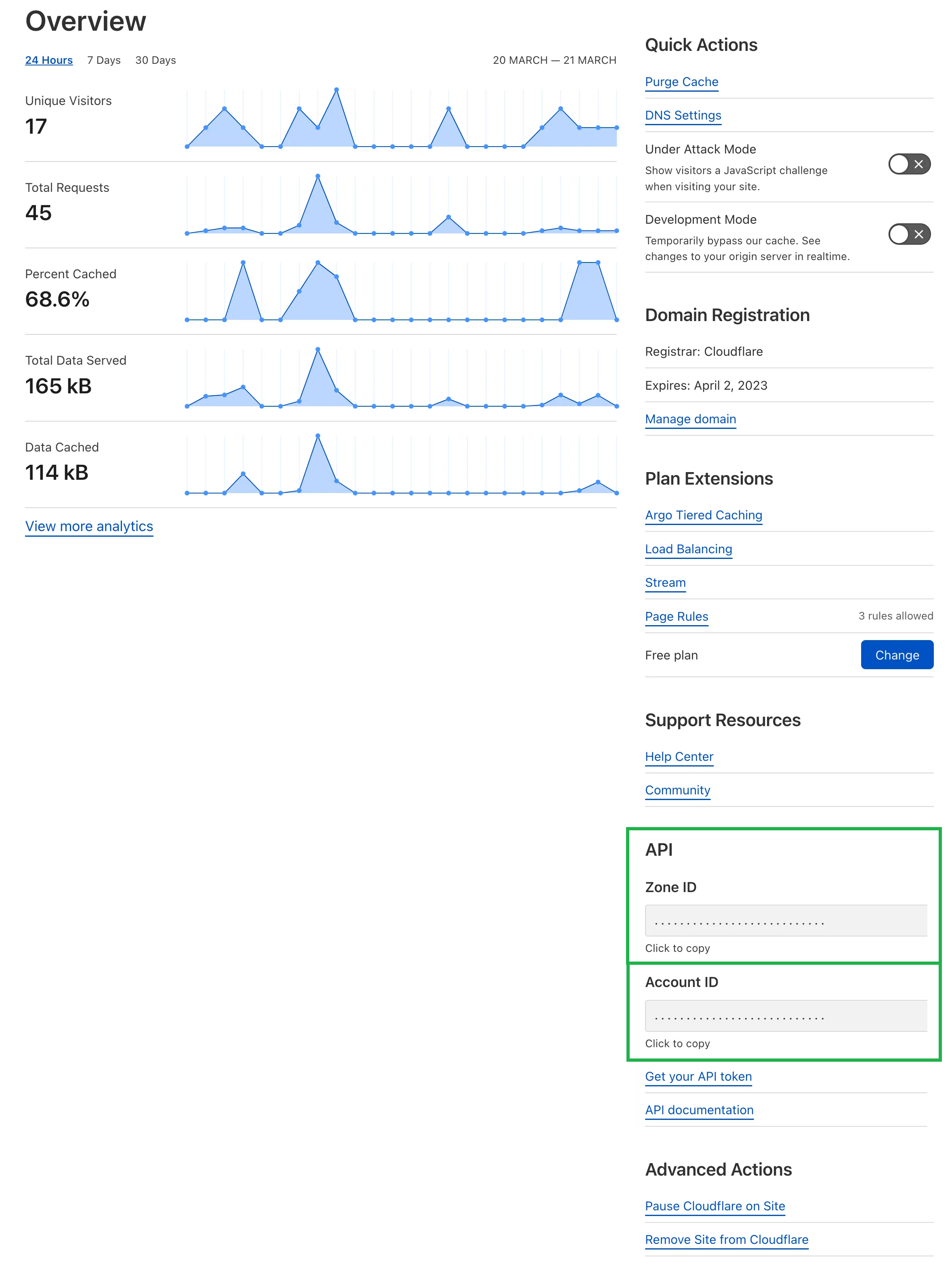

The API section contains your Zone ID and Account ID. To copy these values for API commands or other tasks, select Click to copy.

You should now have all of the following values from Cloudflare, so you can remotely manage / update your DNS information with MediaStack.

Text Only

 - API_TOKEN=
 - ACCOUNT_ID=
 - ZONE_ID=
 - DOMAIN=

Tip

Make sure you save the Cloudflare API Token somewhere safe, as Cloudflare will not display this Token again. If you forget the Token, you will need to regenerate a new one and manually update all of your configurations.

If you need additional assistance, you can refer to Cloudflare guides:

Cloudflare API Token guide: https://developers.cloudflare.com/fundamentals/api/get-started/create-token/.
Cloudflare Account and Zone IDs: https://developers.cloudflare.com/fundamentals/setup/find-account-and-zone-ids/.

Create DNS Entries¶

Now that you have all of the APIs and IDs to manage your domain in Cloudflare, we're going to use the following script in Linux CLI terminal, to add an IP address to the Domain.

In the example below, we are setting the 198.51.100.4 IP Address to your domain name, which is a Cloudflare example IP Address, and we will update it a few steps below when using DDNS-Updater.

Open Linux CLI, update the values for API_TOKEN, ZONE_ID, and DOMAIN, then paste into the Linux terminal, and press "Enter".

Bash

export API_TOKEN="YOUR_API_TOKEN"                # Use your Cloudflare values
export ZONE_ID="YOUR_ZONE_ID"                    # Use your Cloudflare values
export DOMAIN="YOUR.DOMAIN.HERE.COM"             # Use your Cloudflare values


curl -X POST "https://api.cloudflare.com/client/v4/zones/$ZONE_ID/dns_records" \
  -H "Authorization: Bearer $API_TOKEN" \
  -H "Content-Type: application/json" \
  --data '{
  "name": "'"$DOMAIN"'",
  "proxied": true,
  "settings": {},
  "tags": [],
  "ttl": 3600,
  "content": "198.51.100.4",
  "type": "A"
}'

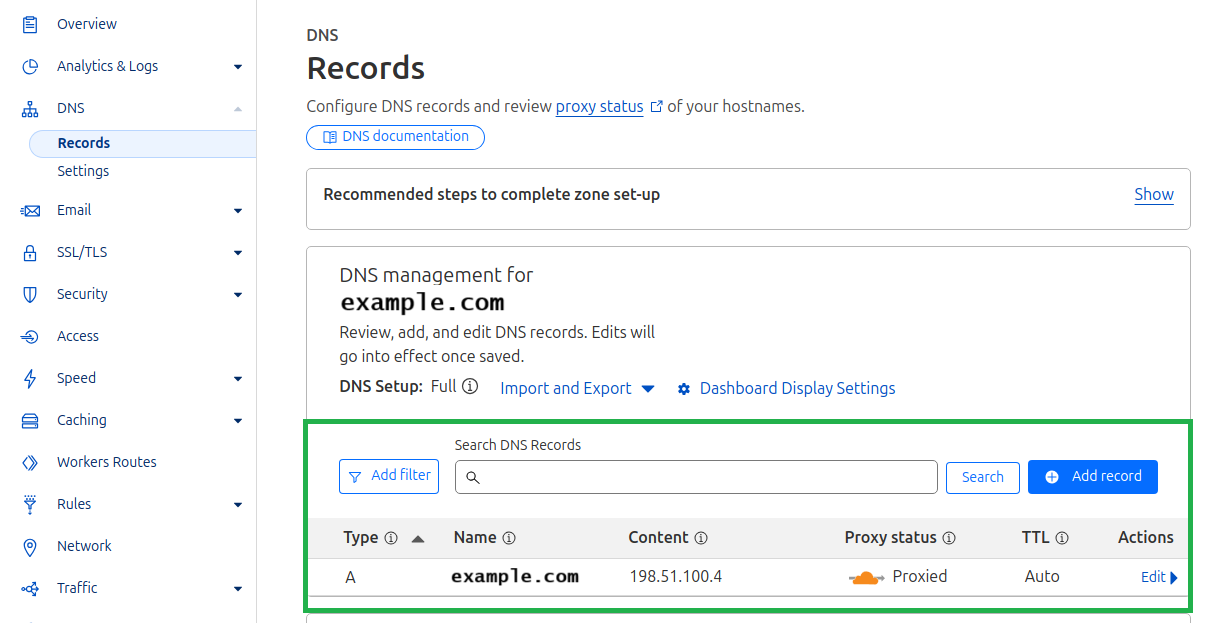

Now that we have the first DNS entry in your Cloudflare Domain Management, we will add the rest of the domains as CNAME entries - this means they will point to the first entry, and use the same IP address from above.

Open Linux CLI, update the values for API_TOKEN, ZONE_ID, and DOMAIN, then paste into the Linux terminal, and press "Enter".

Bash

export API_TOKEN="YOUR_API_TOKEN"                # Use your Cloudflare values
export ZONE_ID="YOUR_ZONE_ID"                    # Use your Cloudflare values
export DOMAIN="YOUR.DOMAIN.HERE.COM"             # Use your Cloudflare values

declare -a subdomains=(
    "auth"
    "bazarr"
    "ddns-updater"
    "filebot"
    "flaresolverr"
    "gluetun"
    "heimdall"
    "homarr"
    "homepage"
    "jellyfin"
    "jellyseerr"
    "lidarr"
    "mylar"
    "plex"
    "portainer"
    "prowlarr"
    "qbittorrent"
    "radarr"
    "readarr"
    "sabnzbd"
    "smtp"
    "sonarr"
    "tdarr"
    "whisparr"
    "www"
)

for subdomain in "${subdomains[@]}"
do
  curl -X POST "https://api.cloudflare.com/client/v4/zones/$ZONE_ID/dns_records" \
  -H "Authorization: Bearer $API_TOKEN" \
  -H "Content-Type: application/json" \
  --data '{
    "type": "CNAME",
    "name": "'"$subdomain"'",
    "content": "'"$DOMAIN"'",
    "ttl": 1,
    "proxied": true
  }'
  echo
  echo "Created CNAME record for $subdomain.$DOMAIN"
  echo
done

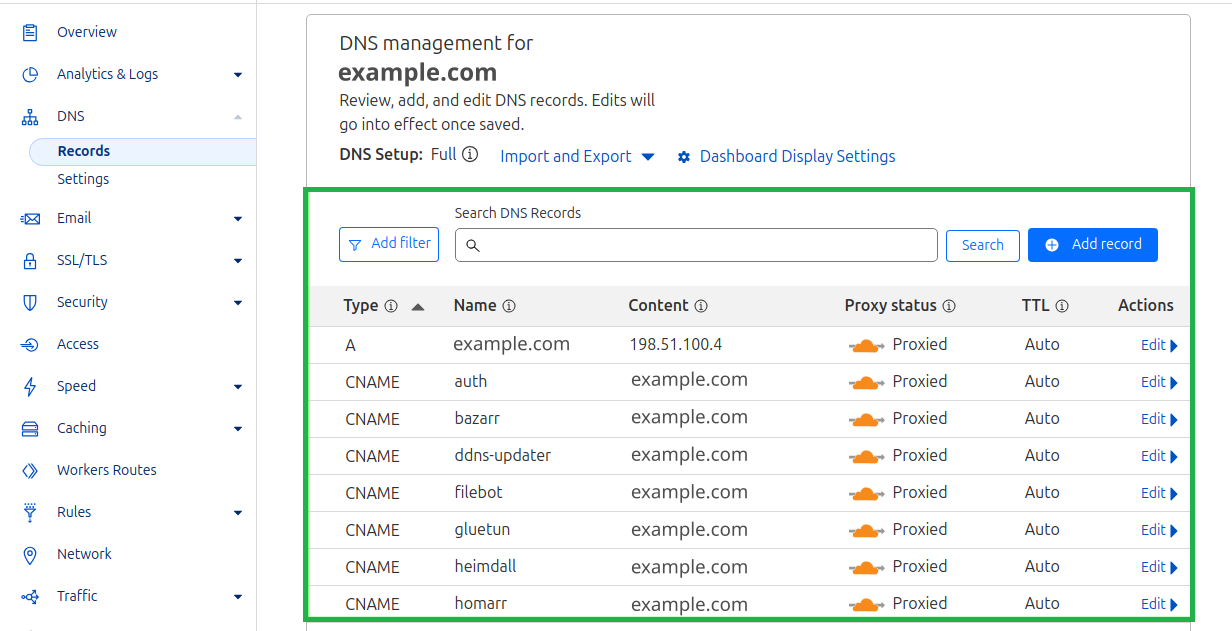

Cloudflare - All Domain CNAME Entries Added

All of the subdomain CNAMES needed for your Remote MediaStack have now been added, however they all still point to the Cloudflare example IP Address of 198.51.100.4, which we want to be able to update with DDNS-Updater, any time our home IP Address changes.

DDNS-Updater¶

We will now configure DDNS-Updater to update our IP address records in Cloudflare, whenever your IP address changes. This will be done by using the Cloudflare provider settings, as listed on the DDNS-Updater support documentation.

If you wish to use an alternate DDNS Provider with DDNS-Updater, there is a list of supported DDNS Providers at: https://github.com/qdm12/ddns-updater#configuration

Go to your FOLDER_FOR_DATA/ddns-updater directory, and create a new file called config.json, and add the following JSON text, with your updated Cloudflare information:

Text Only

cd $FOLDER_FOR_DATA/ddns-updater
vi config.json

JSON

{
    "settings": [
    {
      "provider": "cloudflare",
      "zone_identifier": "YourCloudflareZoneID",
      "domain": "your-domain-name-goes-here.com",
      "ttl": 600,
      "token": "YourCloudflareToken",
      "ip_version": "ipv4",
      "ipv6_suffix": "",
      "proxied": true
    }
  ]
}

Note

Ensure you update the zone_identifier, domain, and token with the values from your own Cloudflare account, which we covered above.

Text Only

"zone_identifier": "6ad4f76c221075a1e0b653c72k2d57cd"        # Use your Cloudflare values
"domain": "your-domain-name-goes-here.com"                   # Use your Cloudflare values
"token": "1ua0r5BPQ7o1tQzqr1gZlHC9VlaqaSdUAWG56GIi"          # Use your Cloudflare values

After you have finished editing the DDNS-Updater config.json file, restart the container for the changes to take effect.

Text Only

sudo docker config stop ddns-updater
sudo docker config start ddns-updater

Check DDNS-Updater has no errors in the log:

Text Only

sudo docker logs ddns-updater

The DDNS-Updater web portal should now show you the updated IP addresses:

http://localhost:8310

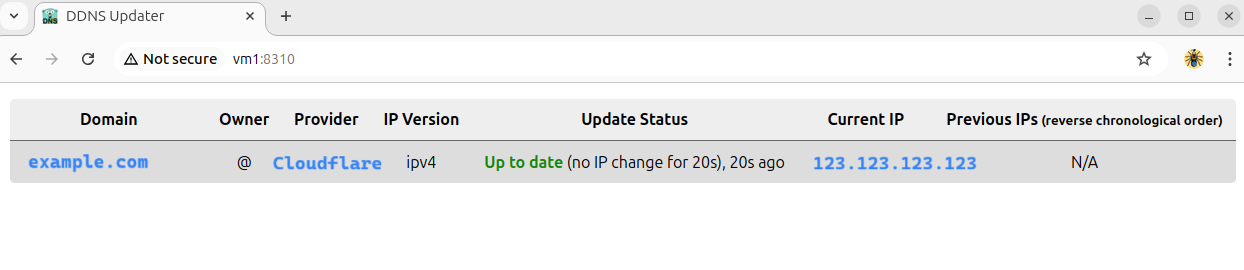

DDNS-Updater - Status of Domain and IP Address

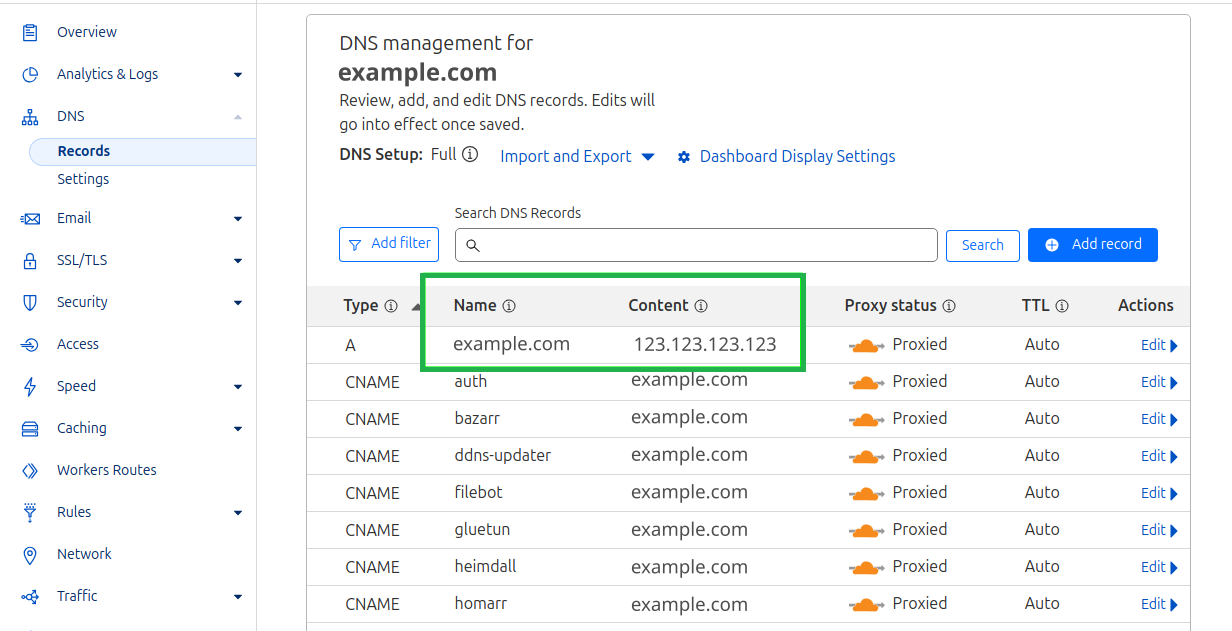

Additionally, when you check the domain in Cloudflare, you will notice the IP Address we added earlier, has now been updated with DDNS-Updater. This will continue to keep the domain name updated, whenever your home IP Address changes.

If you need further information, head over to the DDNS-Updater Wiki:

https://github.com/qdm12/ddns-updater

MediaStack Bookmarks¶

Now that all of the domain (A) and CNAME entries have been added to your Cloudflare domain for all of the MediaStack remote access, then we can add all of the Bookmark links to your web browser, so you can access them quickly.

Download the "External" bookmark file from GitHub to your computer: Import Bookmarks - MediaStackGuide Applications (External URLs).html.

Open the "Import Bookmarks - MediaStackGuide Applications (External URLs).html" file with a text editor, and replace all "YOURDOMAIN" entries, with the domain you set up in Cloudflare (example.com).

Example:

Text Only

  <DT><A HREF="https://jellyfin.YOURDOMAIN/">Jellyfin | Media Player</A>

Would become:

Text Only

  <DT><A HREF="https://jellyfin.example.com/">Jellyfin | Media Player</A>

Now that you have changed all entries for "YOURDOMAIN", you can import the bookmark file into your favourite web browser.

Note

At this stage, we have set up all of the DNS entries for your domain, so they point to your home IP Address, and we've imported the links for our applications. However, we still need to set up DUO, Authelia, SWAG, and Port Forwarding before secure remote access is working correctly, so clicking the links at this stage will only show connection errors.
